Whitley M85 Workstation

Got a Question? Request a Callback

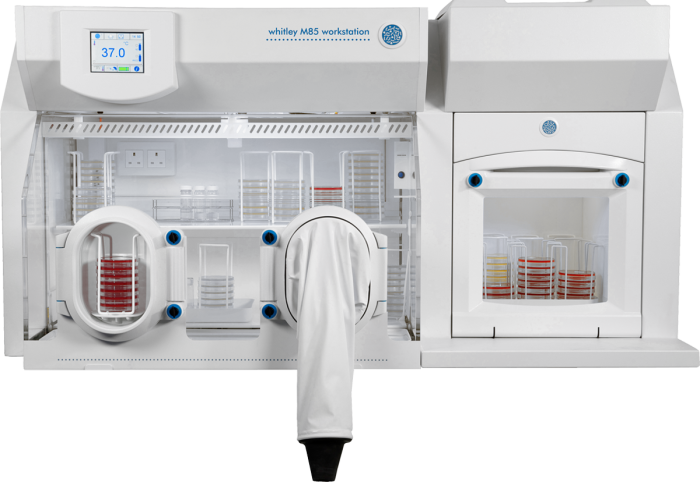

Whitley M85 Workstation

A variable atmosphere workstation with a 30 litre airlock

Rollover Image to Zoom
  • Each porthole also acts as a mini-airlock so you can transfer up to 10 plates each time you insert or withdraw your arms, so reducing airlock cycles and gas usage.
  • Colour, touch-screen control panel for ease of use and for visual display of parameters such as temperature, humidity, and airlock cycle status.
  • Optional refrigeration unit available if you are working with organisms that need low temperature incubation or storage conditions.
  • Reminder to perform calibration can be set for between 7 and 21 days.
  • Automatic commissioning cycle to save you time and resources.

View Specification

The Whitley M85 variable atmosphere workstation is ideal for the study and isolation of Campylobacter spp, Helicobacter pylori and other similarly fastidious microaerophiles. This workstation accommodates between 540 and 610 x 90mm Petri dishes.

The large 30 litre airlock with powered internal door provides effective sample and equipment transfer in the fastest possible time whilst ensuring the minimum amount of oxygen is introduced into the chamber. Two oval ports enable you to work gloved or bare handed.

For total flexibility, up to four gases – nitrogen, carbon dioxide, air and a 10% hydrogen/90% nitrogen mix – can be combined within safe and varying ratios to provide a specific atmosphere for your experiments.

View Specification

Capacity Litres
Capacity Petri Dishes
540 / 610
Port Airlock Capacity
10 plates per port + 90 plates via airlock (110)
Airlock Size (litres)
Porthole System
Manual Ports
Gas Supplies
H2 + N2 / CO2 / N2 / Air
Internal Mains Sockets
Storage Tray
Inspection Lamp
Single Sample Entry
Data Logging
Airlock Cycle Time (seconds)
60, 120, 180, 240 or 300
Extra Cable Glands
Contact Us
Automatic Dehumidifier
Automatic Humidifier
Trolley Available
Co2 Monitoring
Vacuum Take Off
Temperature Range
5°C above ambient up to 45°C
Touchscreen Control
Remote Access
Dimensions (W/D/H mm)
1570 / 760 / 840
Weight (lbs/kgs)
330 / 150

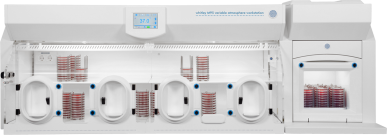

Whitley M95 Workstation

Need double the space? See the M95 4-port chamber.

Whitley M95 Workstation
