Whitley M55 Workstation

Two chambers, Two airlocks and the option of Dual Temperatures

Rollover Image to Zoom

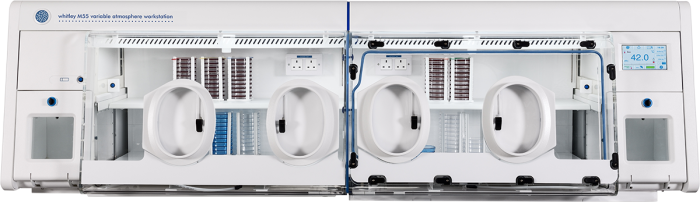

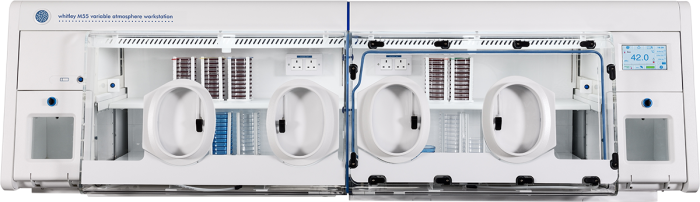

The Whitley M55 Workstation provides a huge working capacity when there is a need to process, culture and examine samples in a sustainable microaerobic environment. It is ideal for the study and isolation of Campylobacter spp, Helicobacter pylori and other similarly fastidious organisms. M range workstations provide the most flexibility of any models in the Whitley range as they allow anoxic/anaerobic, microaerobic or hypoxic atmospheres to be created without the need to change incoming gases.

This is a 4-gas system with built in oxygen, carbon dioxide and hydrogen sensors that allows users to programme precise gas concentrations. The M55 has two airlocks (one on the left and one on the right) and has a huge capacity of 600 litres. Two people can easily work side-by-side in this chamber, in the same environmental conditions.

If you want to be able to operate your workstation with two different temperature levels, specify the dual temperature option. This provides a central divider between the workstation chambers allowing you to select different temperatures for each side. A manually operated sliding door between the two chambers allows samples to be passed from one area into the other.

A range of optional accessories, such as cable glands, power sockets or a single sample entry system, are available to tailor this workstation to your requirements.

  • Two rapid, 12 litre airlocks can transfer 40 plates each in only 60 seconds.
  • Intuitive colour touchscreen interface with PIN-code protected user access levels.
  • Data download facility that allows you to record workstation parameters and download stored data in seconds for traceability and reference.
  • Accommodates up to 1,200 x 90mm Petri dishes.
  • Removable front as standard on the right-hand half of the unit to facilitate the transfer of bulk samples or larger pieces of equipment for use inside the workstation.
  • Colour, touchscreen control panel for ease of use and for visual display of parameters such as temperature, humidity, and airlock cycle status.
  • Ethernet-enabled for remote access to touchscreen.
  • Comes complete with custom-designed trolley.
  • Optional conventional, oval, sleeved ports or a mixture of oval and instant access ports.
  • Automatic commissioning cycle to save you time and resources.

View Specification

Specifications

Capacity Litres
600.00
Capacity Petri Dishes
1080-1200
Port Airlock Capacity
40 plates via each airlock (2 airlocks)
Airlock Size (litres)
12.00
Porthole System
Instant Access or Manual
Gas Supplies
H2+N2 / CO2 / N2 / Air
Footswitch
Wireless
Internal Mains Sockets
Available

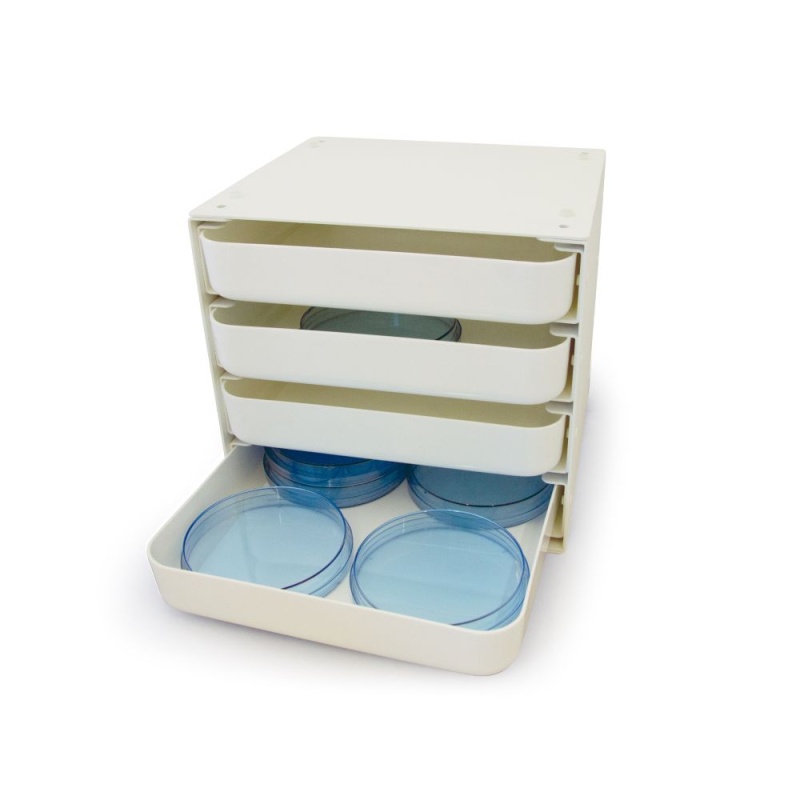

Storage Tray
Available
Inspection Lamp
Available
Single Sample Entry
Available
Data Logging
Included
Airlock Cycle Time (seconds)
Standard 60 (option to increase in 1 min increments to 5 mins)
Extra Cable Glands
Available
Automatic Dehumidifier
Included
Removable Front
Included
Trolley Available
Included
Co2 Monitoring
Included
Vacuum Take Off
Available
O2 Profiling
Available
Temperature Range
5°C above ambient up to 45°C
Touchscreen Control
Yes
Remote Access
Included
HEPA
Available
Dimensions (W/D/H mm)
2510 / 720 / 710
Weight (lbs/kgs)
440 / 200
Whitley A55 HEPA Workstation

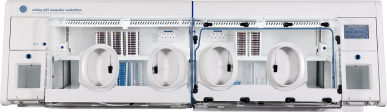

Would a 2-gas system be more cost effective for you? See the Whitley A55.
