Whitley M155 HEPA Workstation

A huge workstation with HEPA filtration

Rollover Image to Zoom

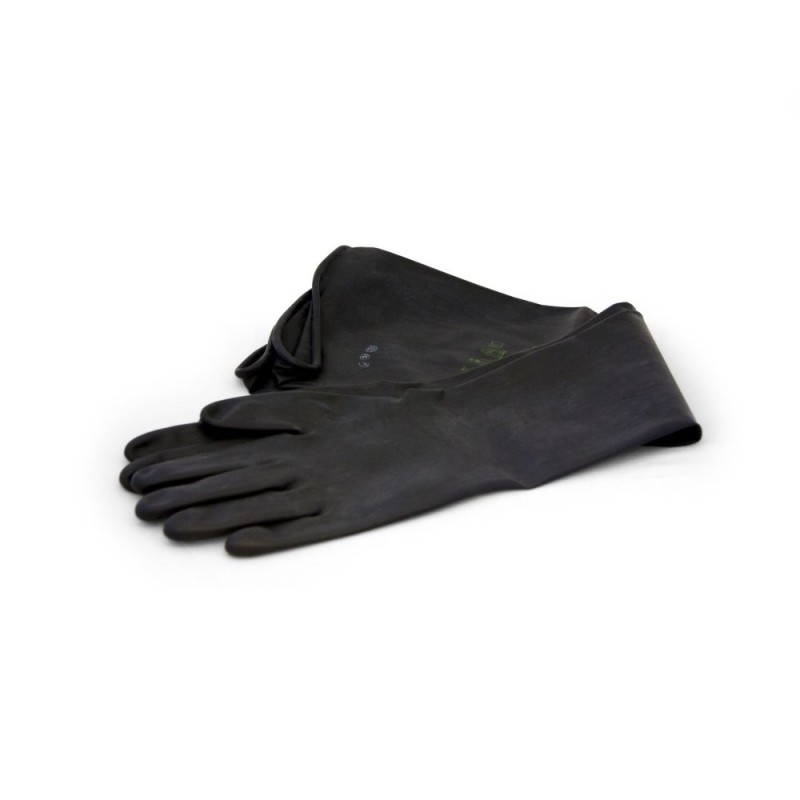

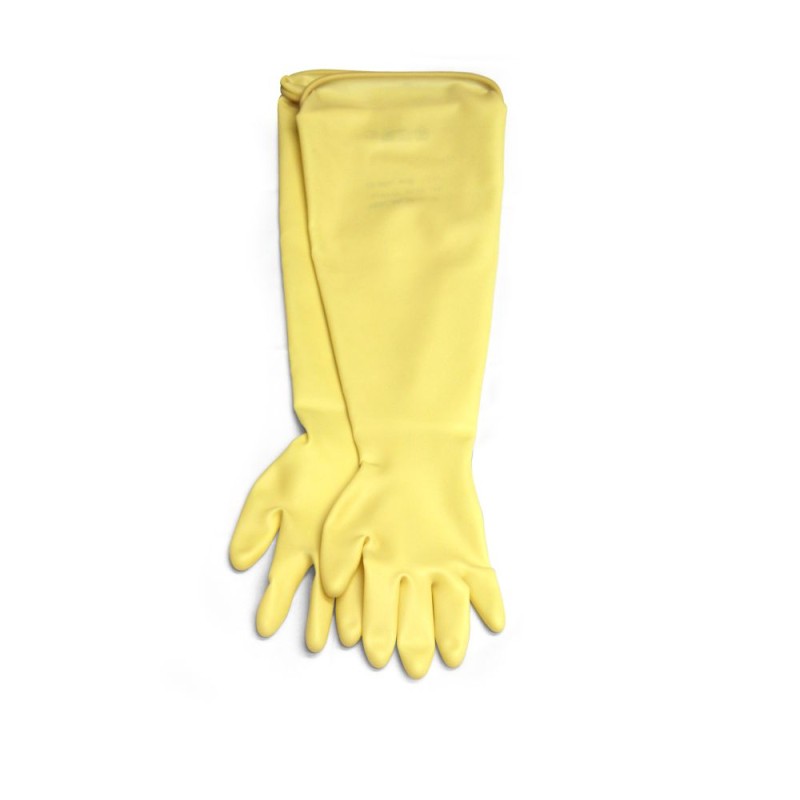

  • Four patented oval ports enable you to work comfortably, gloved or bare handed. With two sets of ports, two researchers can work in the chamber side-by-side.
  • Rather than use off-the-shelf HEPA filters, DWS has worked with one of the world's leading filter manufacturers to develop a filter specifically tailored to suit this workstation.
  • Levels of atmospheric cleanliness inside the workstation exceeds the requirements of ISO 14644 Class 3 (equivalent to Class 1 of the US Fed Std 209E Cleanroom Standards and exceeds the particle counts attained at rest’ (without an operator) of Grade A as set out in the GMP Guidelines). We can provide test results confirming particulate levels inside the workstation.
  • Fitted with a fan that circulates the internal atmosphere continuously - contributing to even temperature distribution and ensuring any internal particulate will be in motion.
  • Two removable fronts to enable the transfer of larger batches of samples or pieces of equipment for use inside the chamber.
  • Colour, touch screen control panel for ease of use and for visual display of parameters such as temperature, humidity and airlock cycle status.
  • Other options to tailor the workstation to your requirements include: front loading single sample entry system; cable glands; shelves and data logging.

View Specification

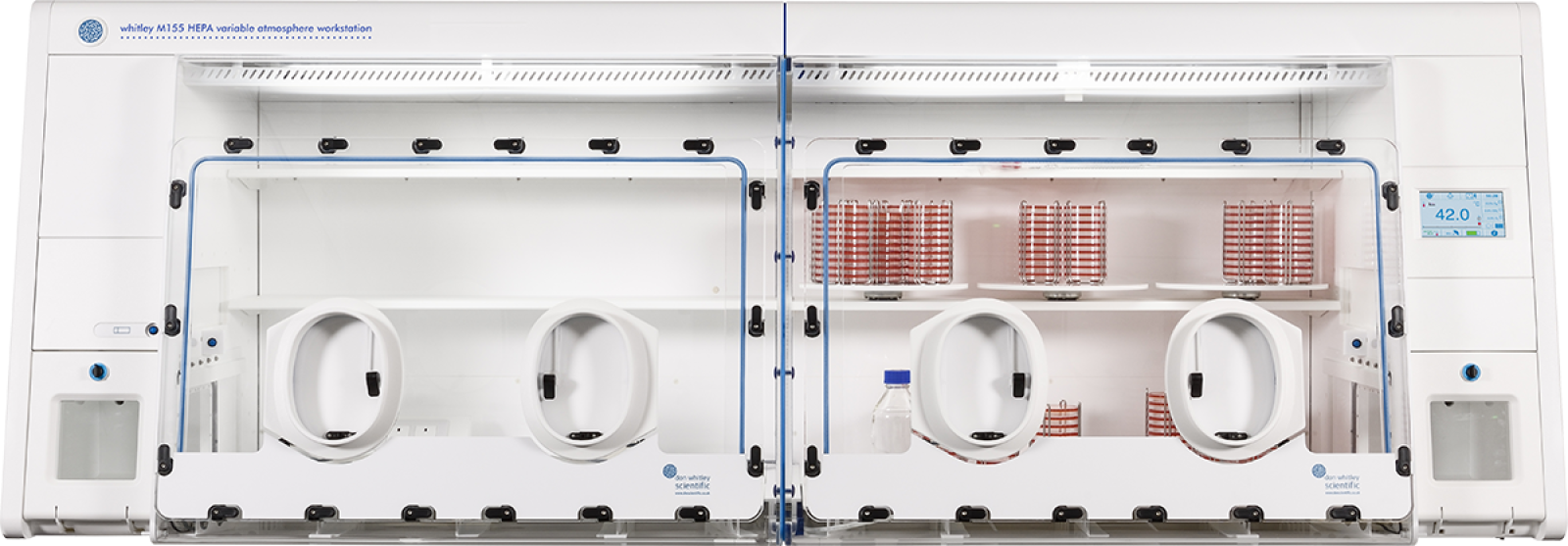

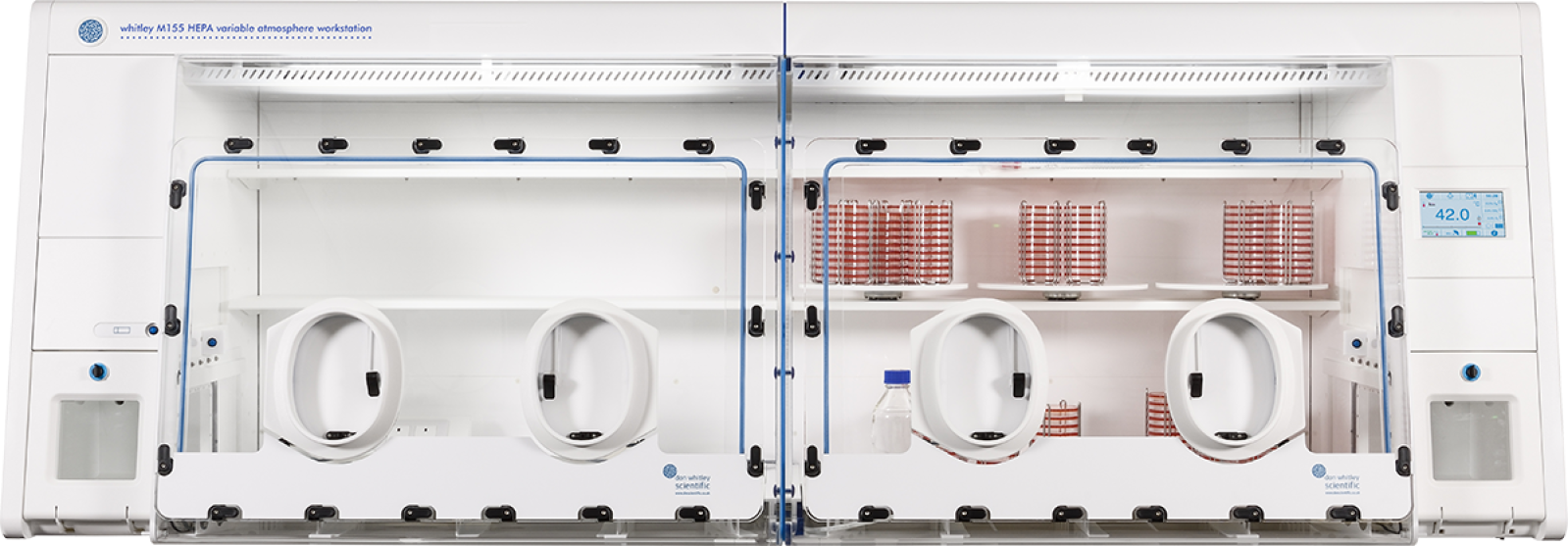

The Whitley M155 HEPA variable atmosphere workstation is ideal for the study and isolation of fastidious microaerophiles where HEPA filtration is required. This workstation has a capacity of 1,800 litres; two airlocks; and two removable fronts.

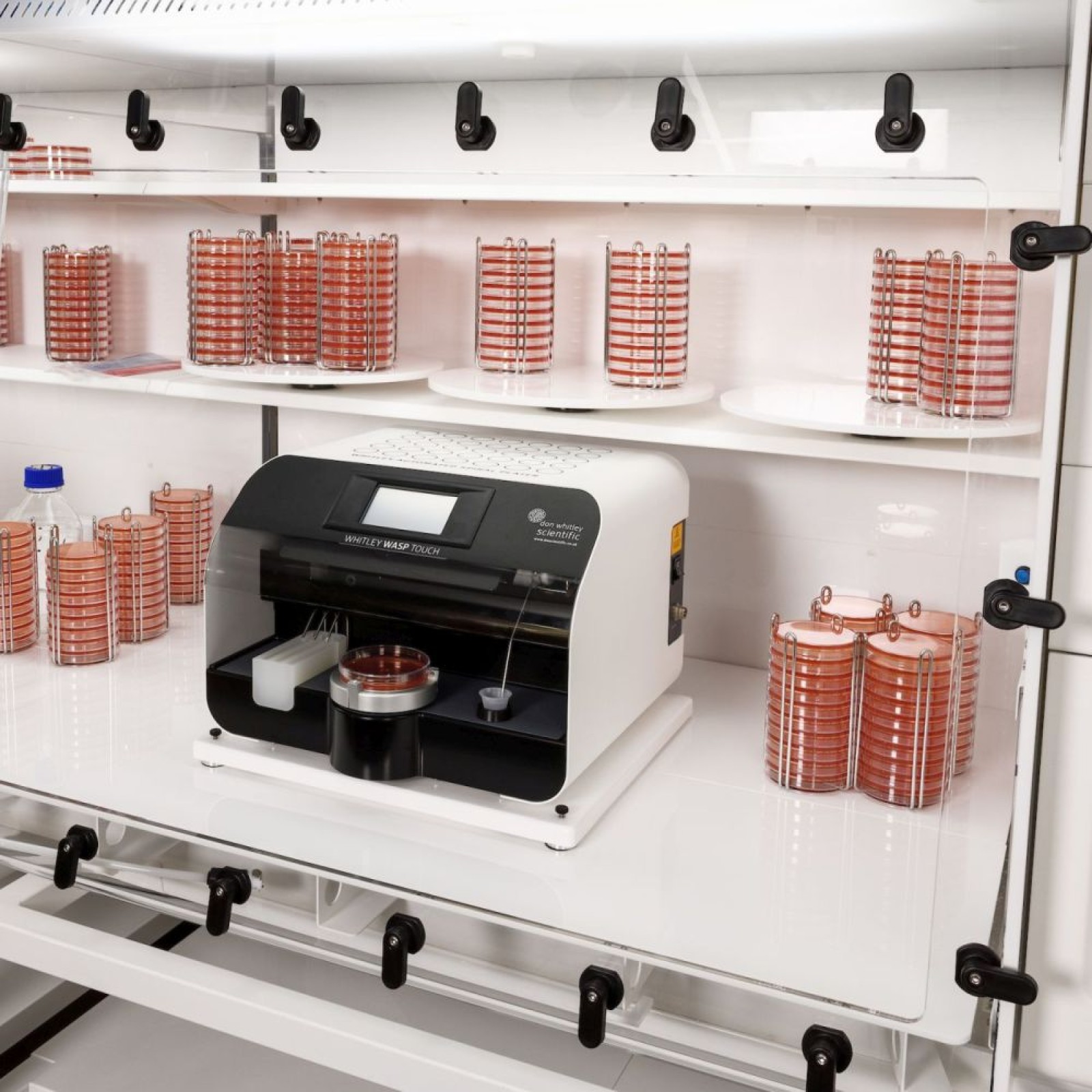

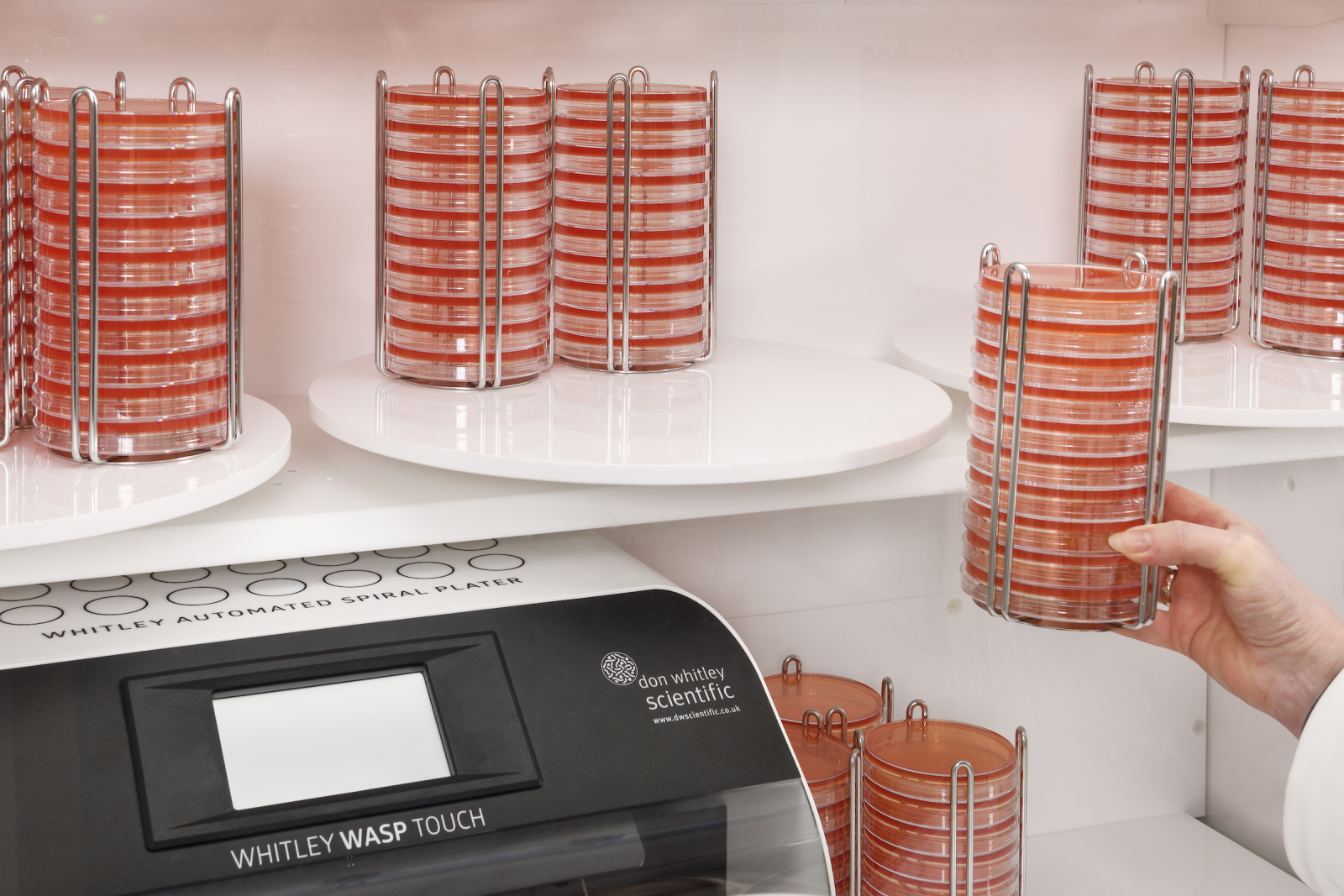

The huge capacity of this workstation means that it can accommodate a variety of laboratory equipment, e.g cell sorters, colony pickers, high throughput bioreactors, microscopes and spiral platers, such as the Whitley WASP Touch. DWS also offers two optional cooling methods for this workstation. A Refrigeration System could be useful if you are working with organisms that need low temperature incubation. Alternatively, the Heat Removal System allows the workstation to maintain ambient temperatures at all times.

This is a 4-gas system with built in oxygen, CO2 and hydrogen sensors allowing users to programme precise gas concentrations, perfect for manipulating samples in a sustainable microaerobic environment. Microaerobic workstations provide the most flexibility of any models in the Don Whitley Scientific range; allowing anoxic/anaerobic, microaerobic or hypoxic atmospheres to be created if desired without the need to change incoming gasses.

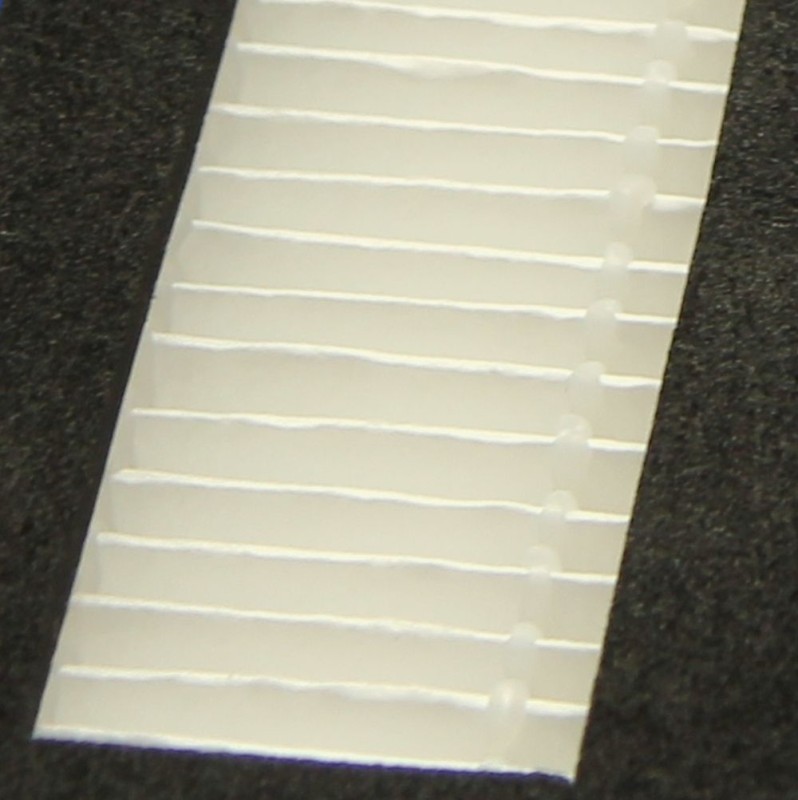

The M155 HEPA is fitted with the unique Whitley Internal HEPA Filtration System. All the atmosphere passes through the filter hundreds of times an hour, which ensures the chamber environment is cleaned quickly.

View Specification

Capacity Litres
1800.00
Port Airlock Capacity
20 x 500ml Duran bottles or 40 plates via 2 airlocks
Airlock Size (litres)
16.00
Porthole System
Manual
Gas Supplies
H2 + N2 / CO2 / N2 / Air
Footswitch
Wireless

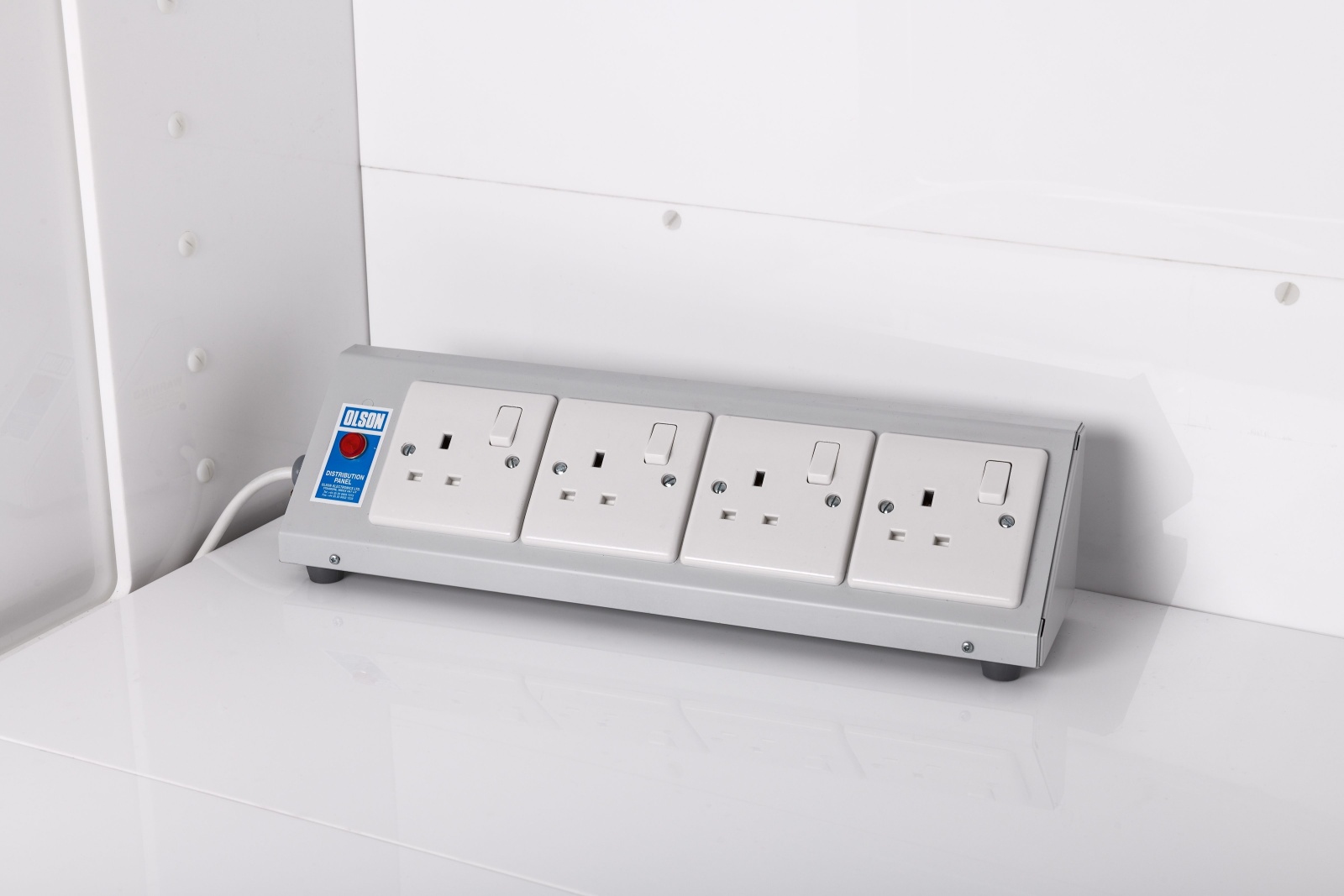

Internal Mains Sockets
Available

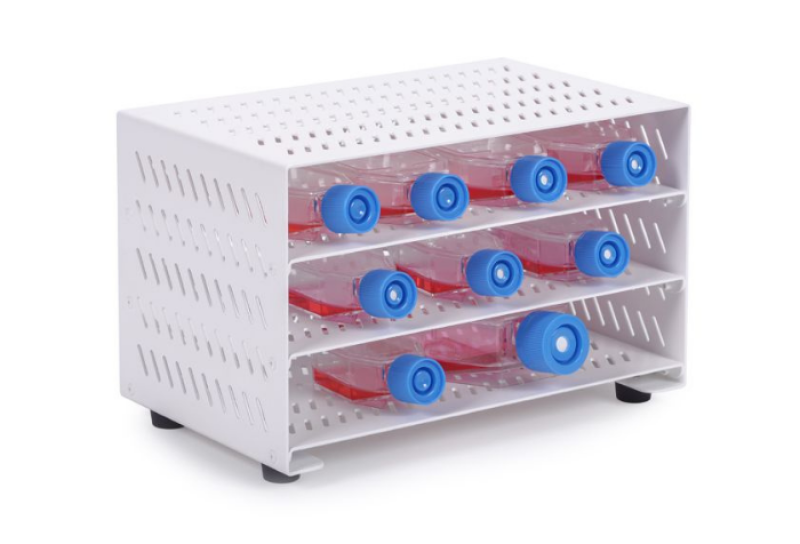

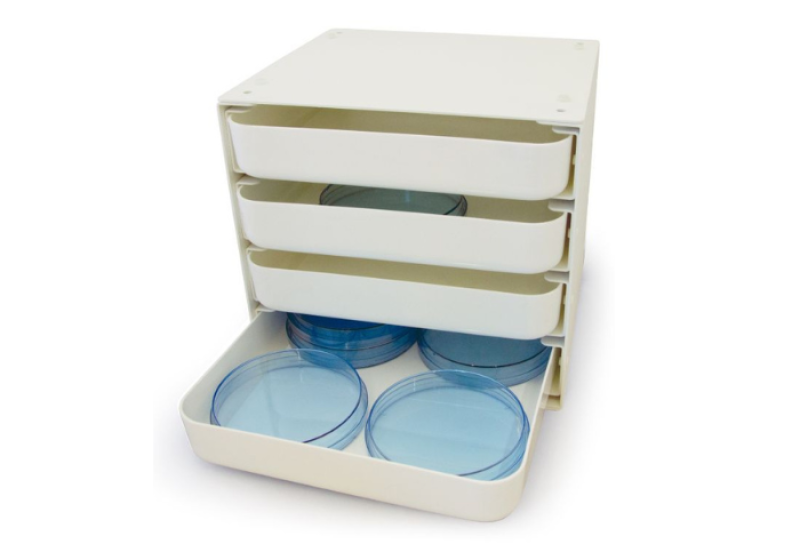

Storage Tray
Available

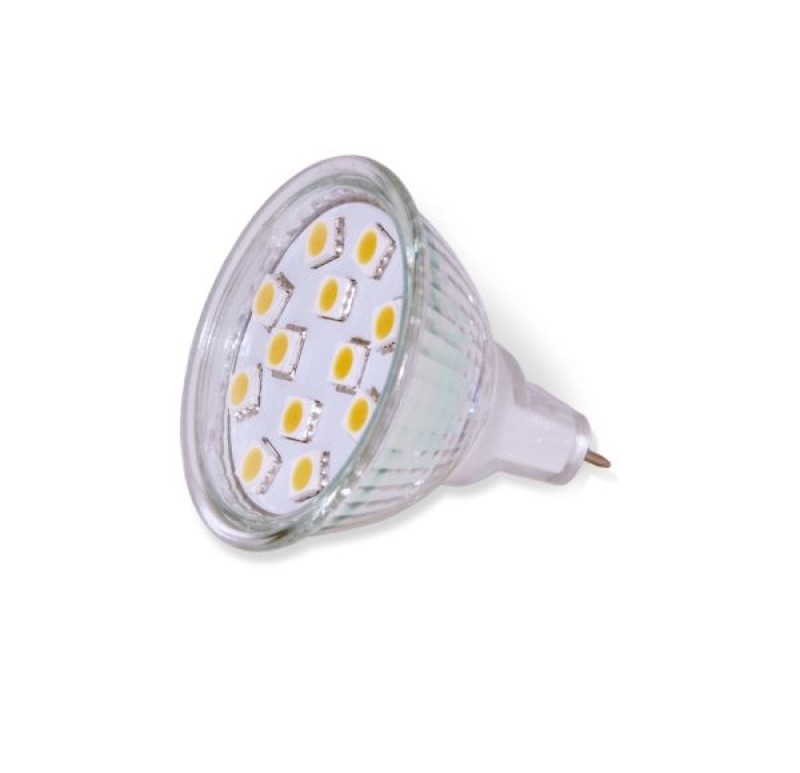

Inspection Lamp
Available
Single Sample Entry
Available
Refrigeration
Available
Data Logging
Available
Airlock Cycle Time (seconds)
60
Extra Cable Glands
Available
Microscope
Contact Us
Automatic Dehumidifier
Included
Removable Front
Included
Trolley Available
Included
Vacuum Take Off
Available
O2 Profiling
Available
Temperature Range
4°C above ambient up to 45°C
Touchscreen Control
Yes
HEPA
As Standard
Dimensions (W/D/H mm)
2875 / 1056 / 993
Weight (lbs/kgs)
771 / 350
