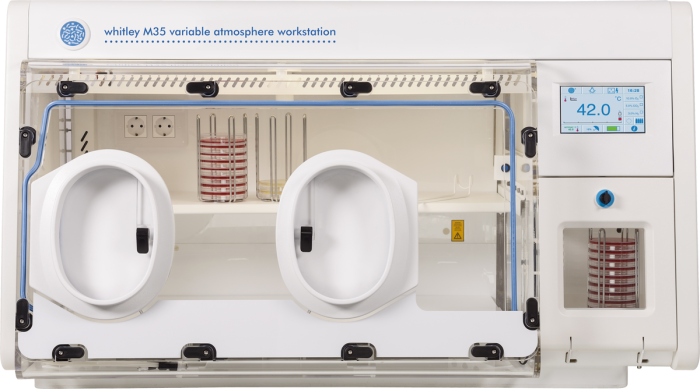

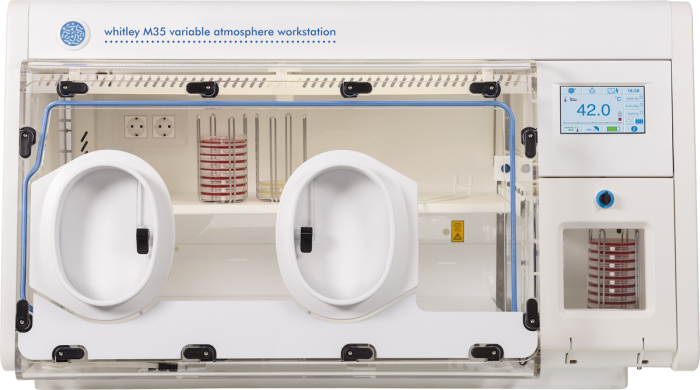

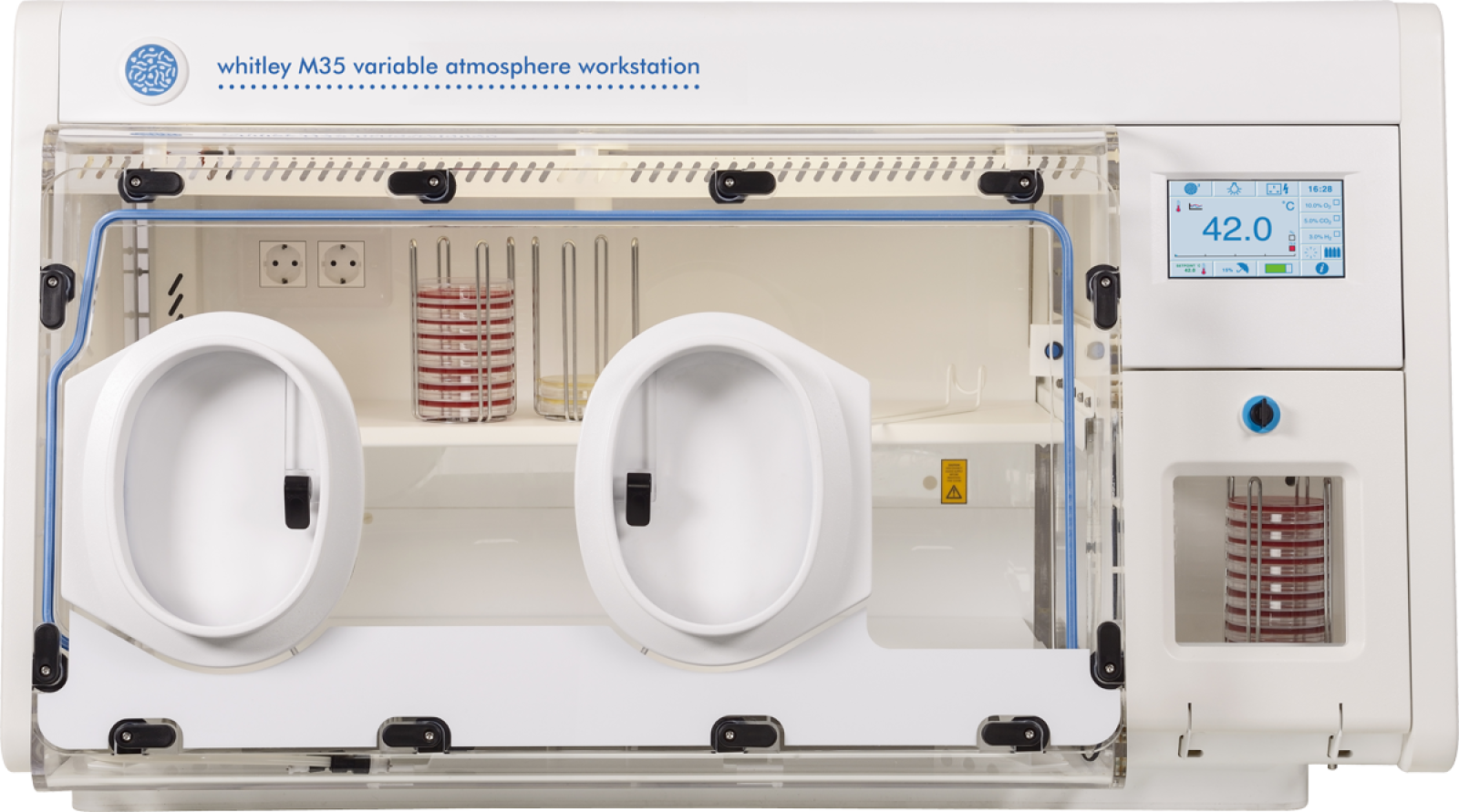

Whitley M35 Workstation

Ideal for the isolation and study of fastidious organisms

Rollover Image to Zoom

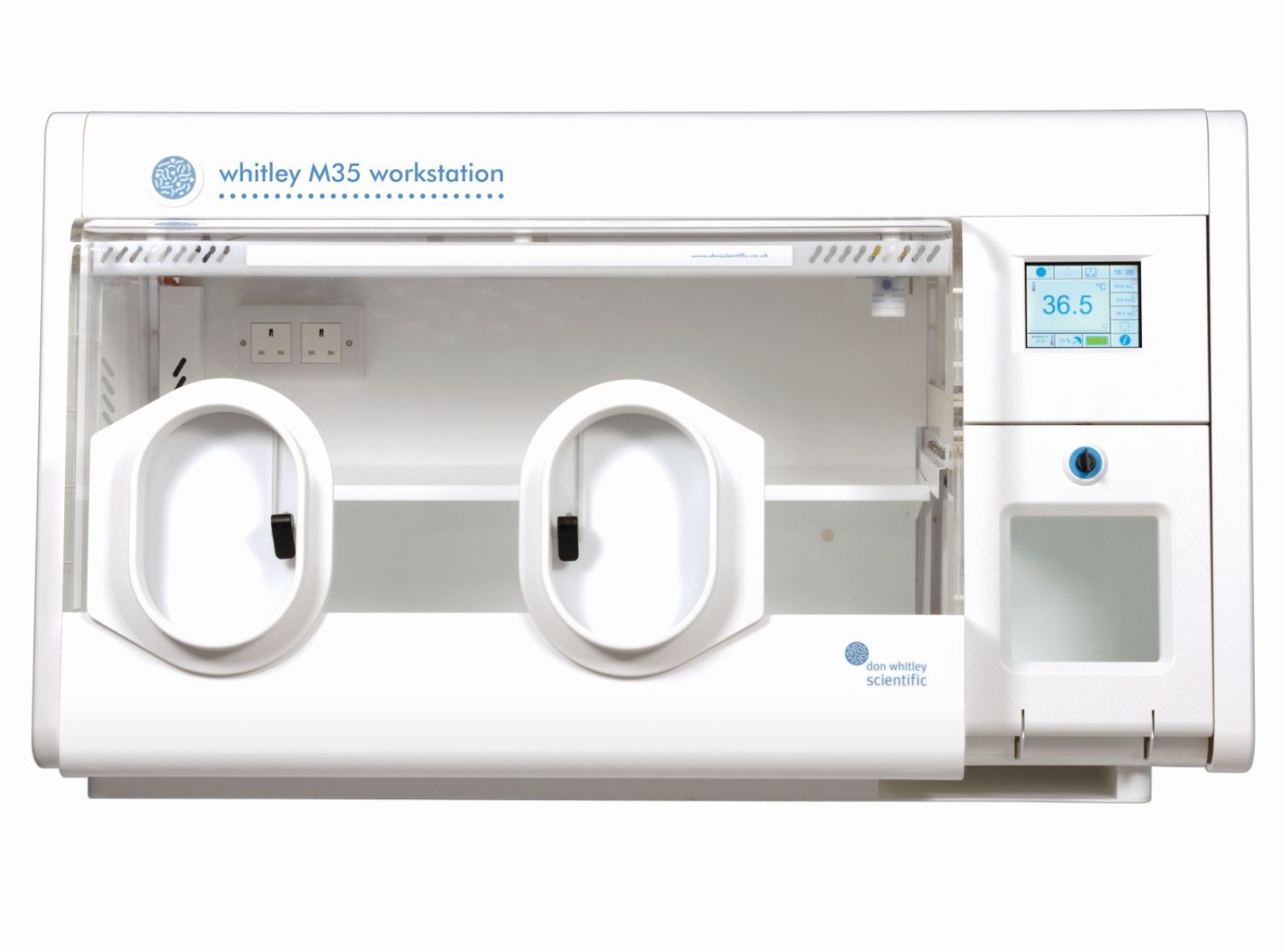

The Whitley M35 Workstation is a 4-gas system with built-in oxygen, carbon dioxide and hydrogen sensors. Precise gas concentrations can be programmed, which is perfect for manipulating samples in a sustainable microaerobic environment. Whitley M Range workstations are extremely flexible in use, allowing anoxic/anaerobic, microaerobic or hypoxic atmospheres to be created, if desired, without the need to change incoming gases.

These workstations were originally designed for the study and isolation of microaerophilic organisms such as Campylobacter spp, Helicobacter pylori and other similarly fastidious organisms. However, due to the ability to control the atmospheric from 0% to 20% oxygen, these systems are widely used as both microbiology and cell culture workstations.

As with our other microaerobic and anaerobic workstations, the Whitley M35 can be specified with the Whitley Automatic Humidification System. This system is especially beneficial in the cultivation of microaerophilic bacteria such as Campylobacter spp. Our own laboratory tests have indicated that Campylobacter colonies grow larger and exhibit more typical morphology when incubated in an atmosphere with elevated humidity (at least 75% RH).

A range of optional accessories, such as data logging, single sample entry system, removable front and cable glands are available to tailor this workstation to your particular requirements.

  • The M35 can accommodate up to 600 x 90mm Petri dishes.

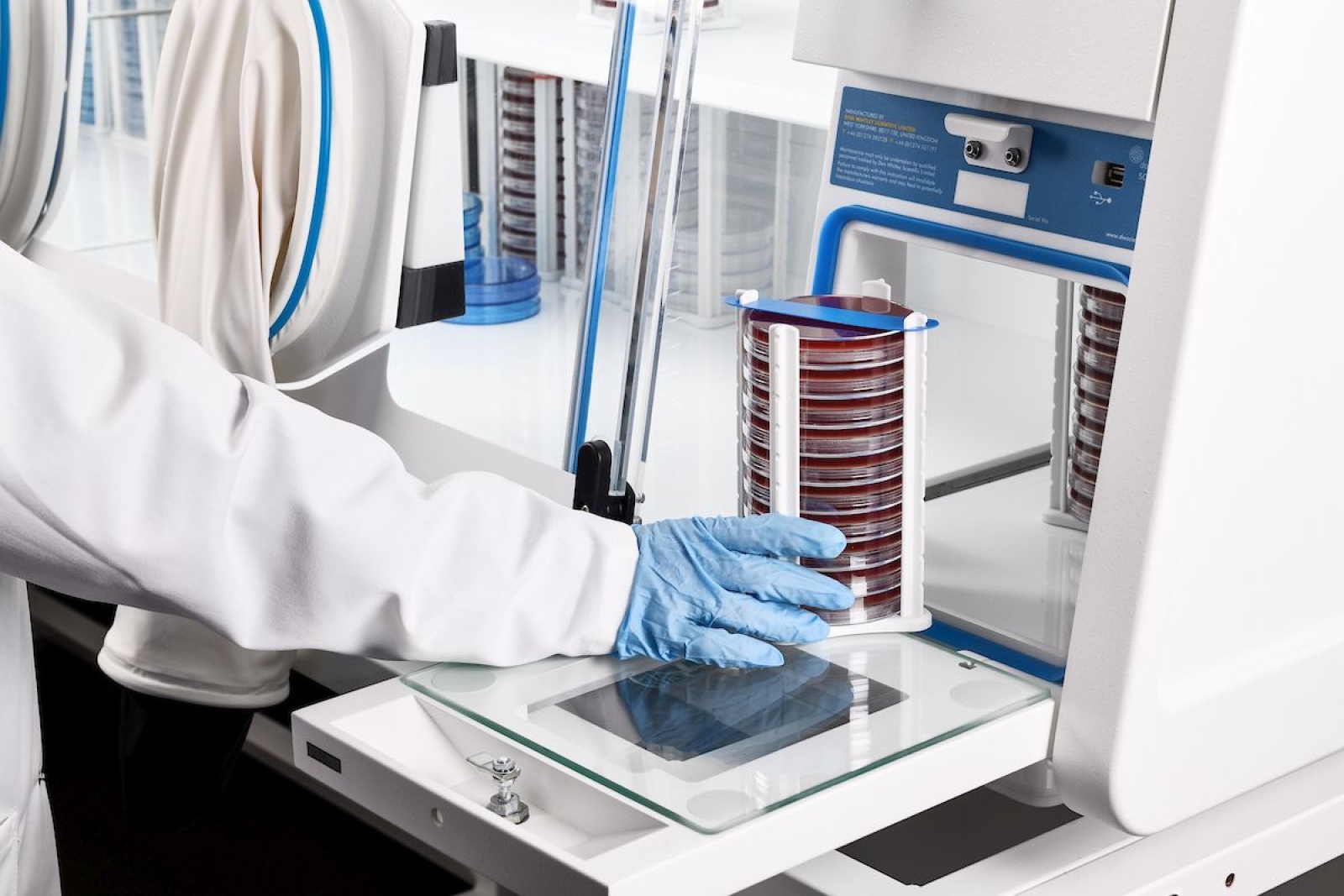

  • A rapid, 12 litre airlock that can transfer 40 plates in only 60 seconds.
  • Intuitive colour touchscreen interface with PIN-code protected user access levels.
  • Ethernet-enabled for remote access to touchscreen.
  • Data download facility that allows you to record workstation parameters and download stored data in seconds for traceability and reference.
  • NEW - motorised height adjustable trolley now available for the Whitley M35.

View Specification

Specifications

Capacity (litres)
300.00
Capacity (petri dishes)
540 / 600
Airlock Capacity
40 x 90mm Petri dishes
Airlock Size (litres)
12.00
Porthole System
Manual ports
Gas Supplies
H2&N2 / CO2 / N2 / Air
Footswitch
Wireless
Internal Mains Sockets
Available
Storage Tray
Available

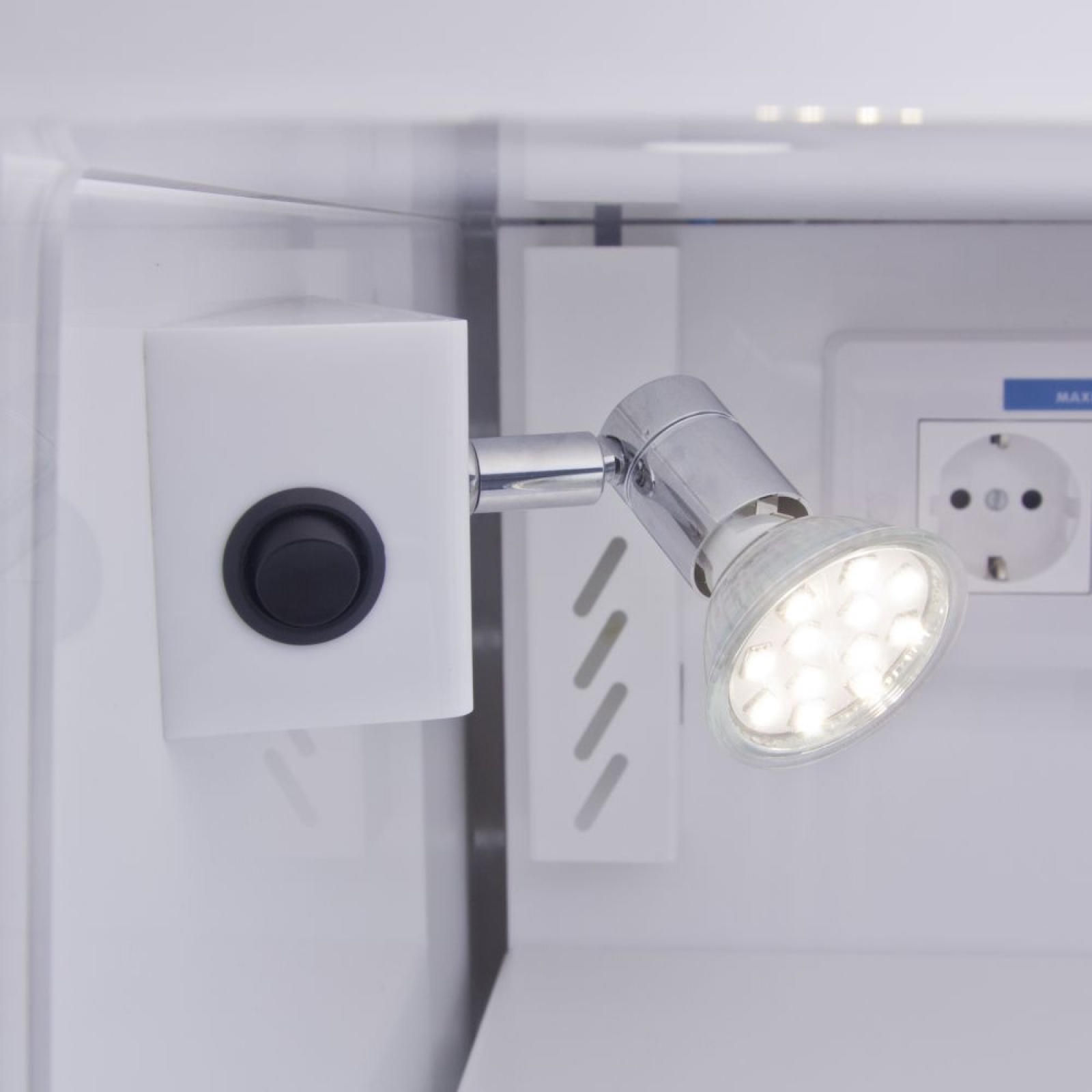

Inspection Lamp
Available
Single Sample Entry
Available
Data Logging
Available
Airlock Cycle Time (seconds)
Standard 60 (Option to increase in 1min increments to 5mins)
Extra Cable Glands
Available
Automatic Dehumidifier
Included
Automatic Humidifier
Available
Removable Front
Available
Trolley Available
Available
Vacuum Take Off
Available
Temperature Range
5°C above ambient up to 45°C
Touchscreen Control
Yes
Remote Access
Included
HEPA
Available
Dimensions (W/D/H mm)
1255 / 720 / 710
Weight (lbs/kgs)
220 / 100

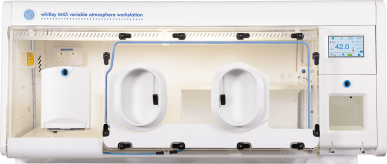

M45 Workstation
