Whitley M45 Workstation

Got a Question? Request a Callback
M45 Workstation

Variable atmosphere and an instant access port

Rollover Image to Zoom

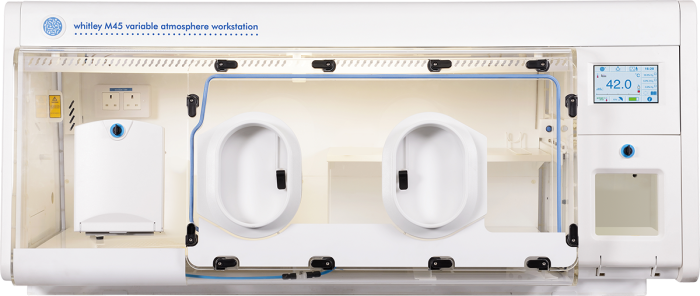

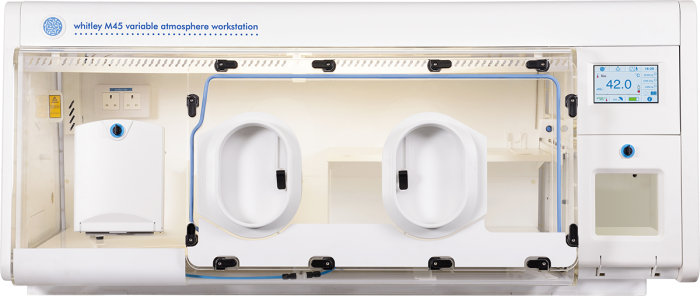

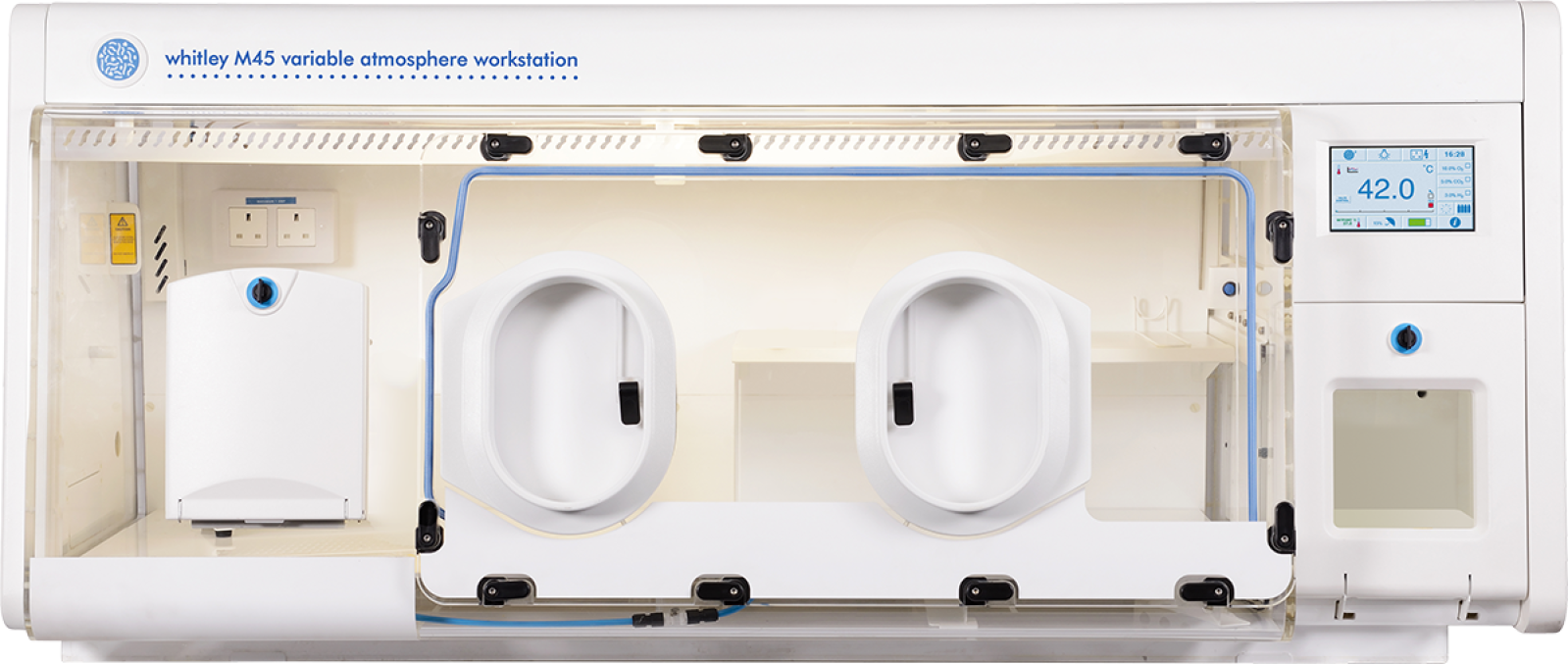

The Whitley M45 Workstation is a 4-gas system with built-in oxygen, carbon dioxide and hydrogen sensors, which allows users to programme precise gas concentrations.

Whitley M Range Workstations provide the most flexibility of any models in the Don Whitley Scientific range, allowing anoxic/anaerobic, microaerobic or hypoxic atmospheres to be created if desired without the need to change incoming gases.

Originally designed for studying, isolating and manipulating samples such as Campylobacter spp, Helicobacter pylori and other similarly fastidious microaerophiles in a sustainable microaerobic environment, the flexibility of atmospheric control (from 0% to 20% oxygen) that these workstations provide enables them to be used for both microbiology and cell culture applications. As with our other microaerobic and anaerobic workstations, the M45 can be specified with the Whitley Automatic Humidification System. This is particularly relevant as tests in our in-house laboratory have indicated that Campylobacter colonies grow larger and exhibit more typical morphology when incubated in an atmosphere with elevated humidity (at least 75% RH).

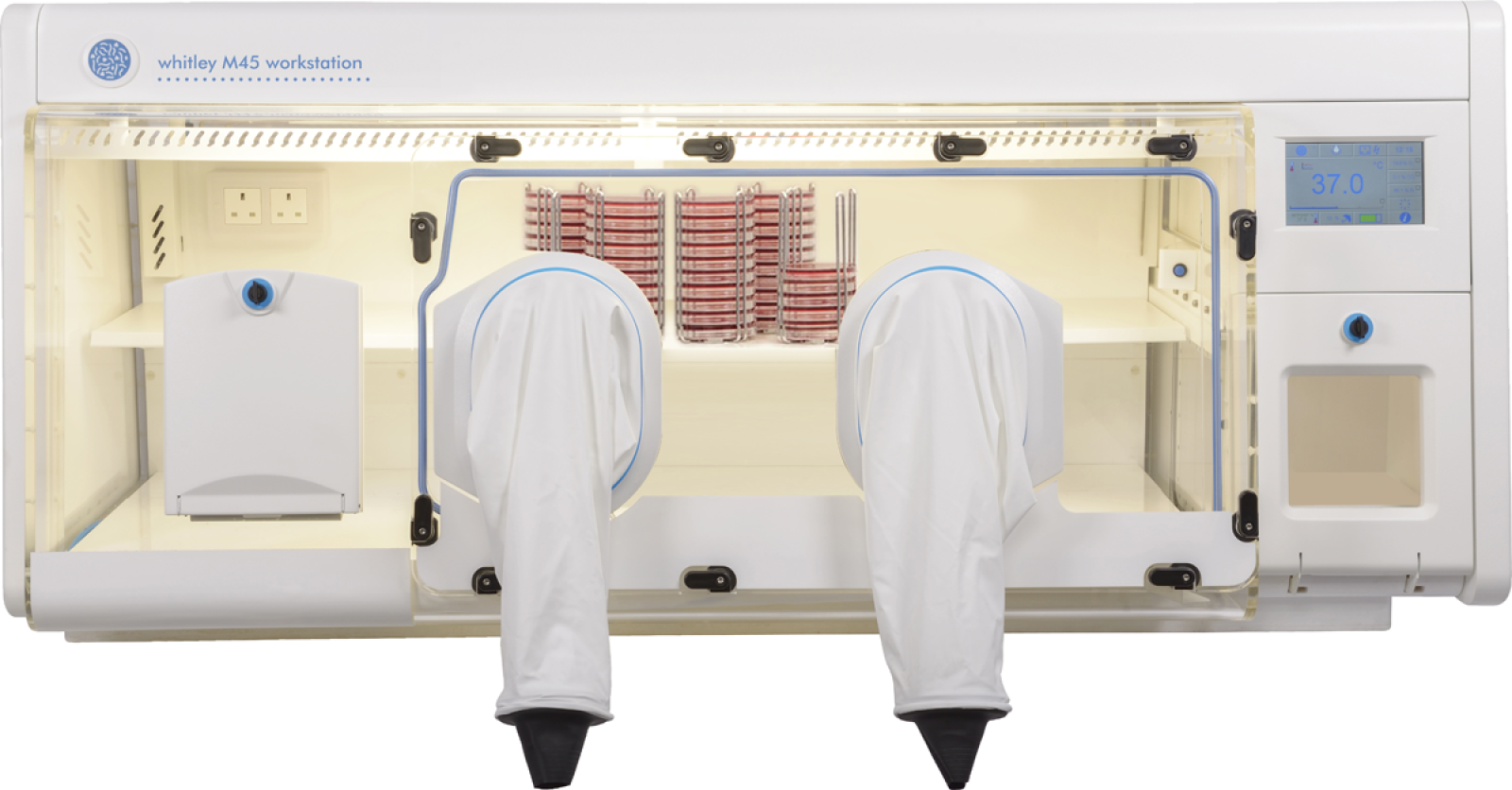

The M45 has three ports for convenient user access to the entire incubation and working areas and can accommodate up to 900 x 90mm Petri dishes. The optional Whitley Internal HEPA Filtration System quickly creates and maintains a particle-free environment that exceeds the requirements stipulated by ISO 14644 Class 3.

  • Optional removable front (with instant access or traditional sleeved ports) to enable the transfer of larger batches of samples or pieces of equipment for use inside the chamber.

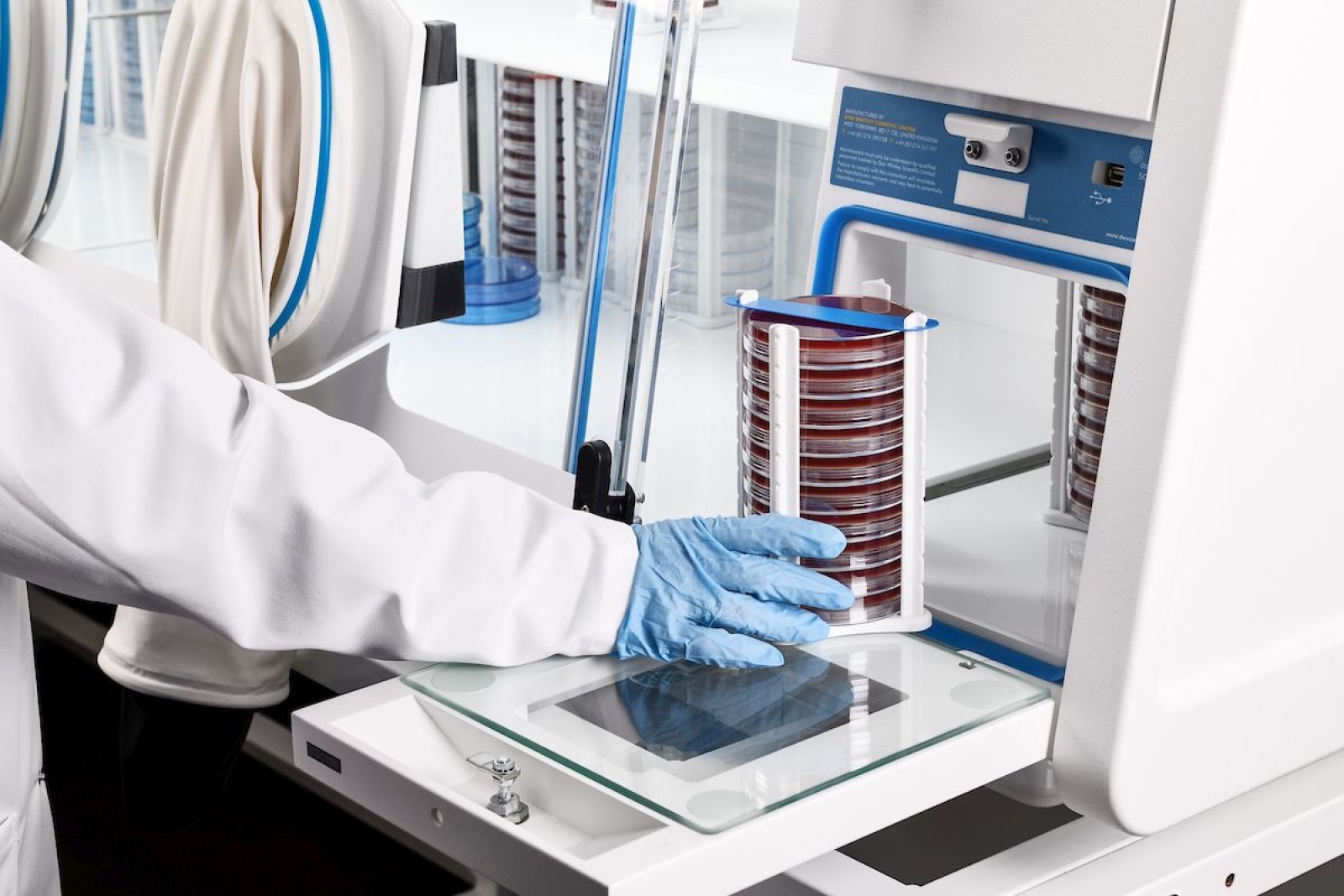

  • Built-in rapid airlock allows the transfer of plates in just 60 seconds.

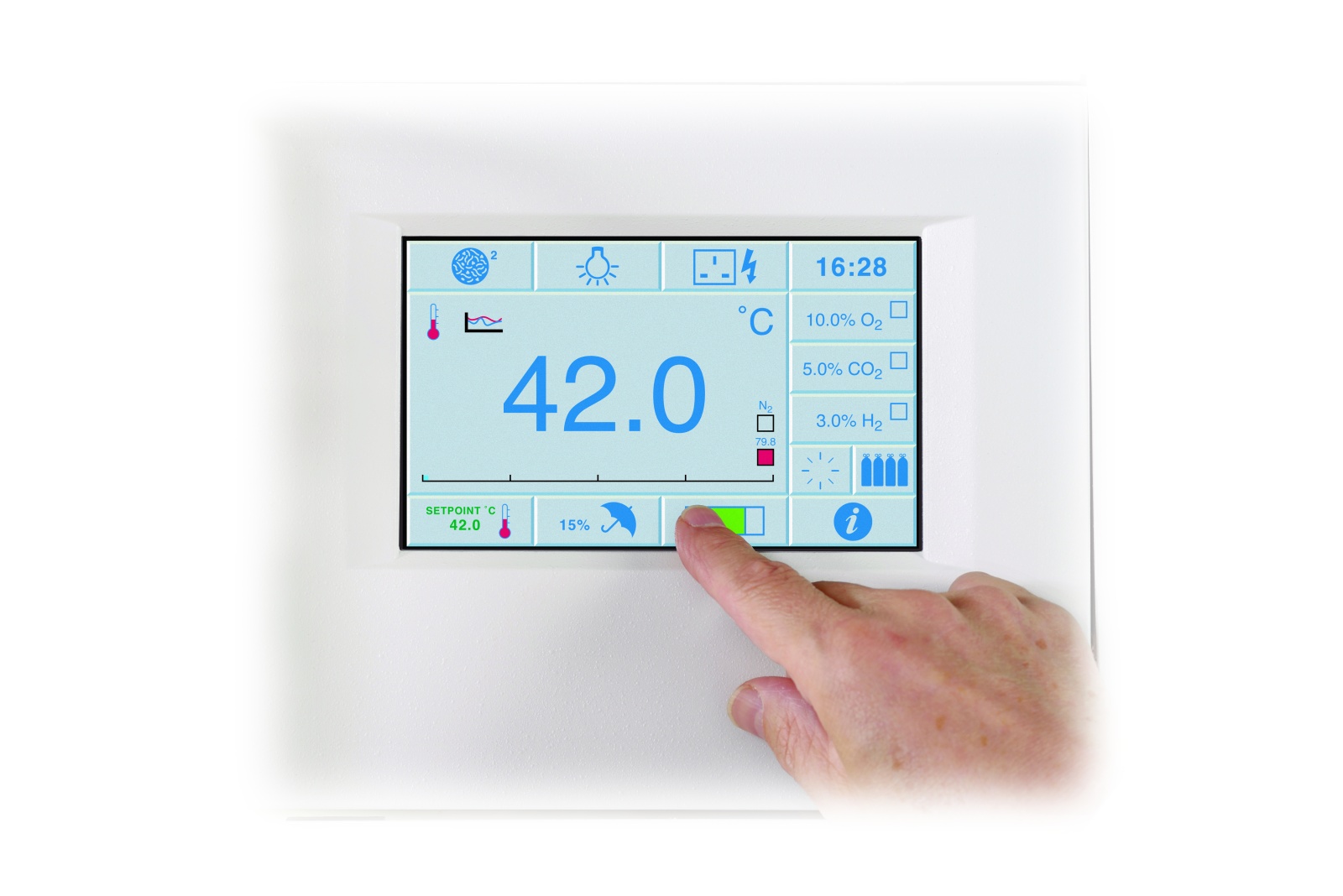

  • Colour, touch-screen control panel for ease of use and for visual display of parameters such as temperature, humidity, and airlock cycle status.
  • Reminder to perform calibration can be set for between 7 and 21 days.
  • Can be specified with the Whitley Internal HEPA Filtration System for additional product protection.
  • Save time with the automatic commissioning cycle.
  • A range of additional accessories, such as a single sample entry systems, light tight cover, and data logging options, are available to tailor this workstation to your particular requirements.

View Specification


Capacity (litres)
Capacity (petri dishes)
780 / 860
Airlock Capacity
40 x 90mm Petri dishes
Airlock Size (litres)
Porthole System
1 x Instant Access Port + 2 Manual Oval Sleeved Ports (M45) or 3
Gas Supplies
H2 + N2 / CO2 / N2 / Air
Internal Mains Sockets
Storage Tray
Inspection Lamp
Single Sample Entry
Data Logging
Airlock Cycle Time (seconds)
Standard 60 (Option to increase in 1min increments to 5mins)

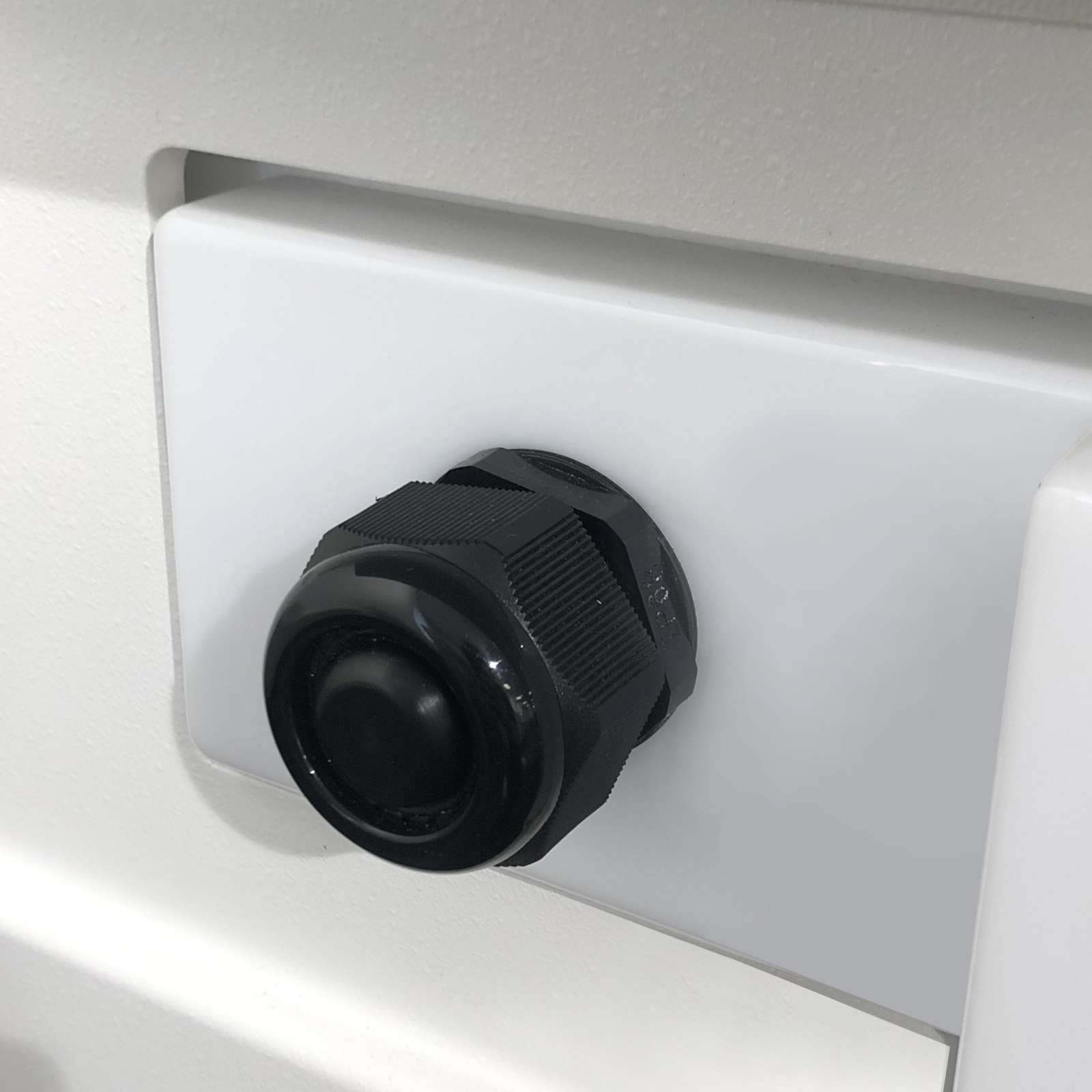

Extra Cable Glands
Automatic Dehumidifier
Automatic Humidifier
Removable Front
Trolley Available
CO2 Monitoring
Vacuum Take Off
Temperature Range
5°C above ambient up to 45°C
Touchscreen Control
Remote Access
Dimensions (W/D/H mm)
1660 / 720 / 710
Weight (lbs/kgs)
286 / 130
