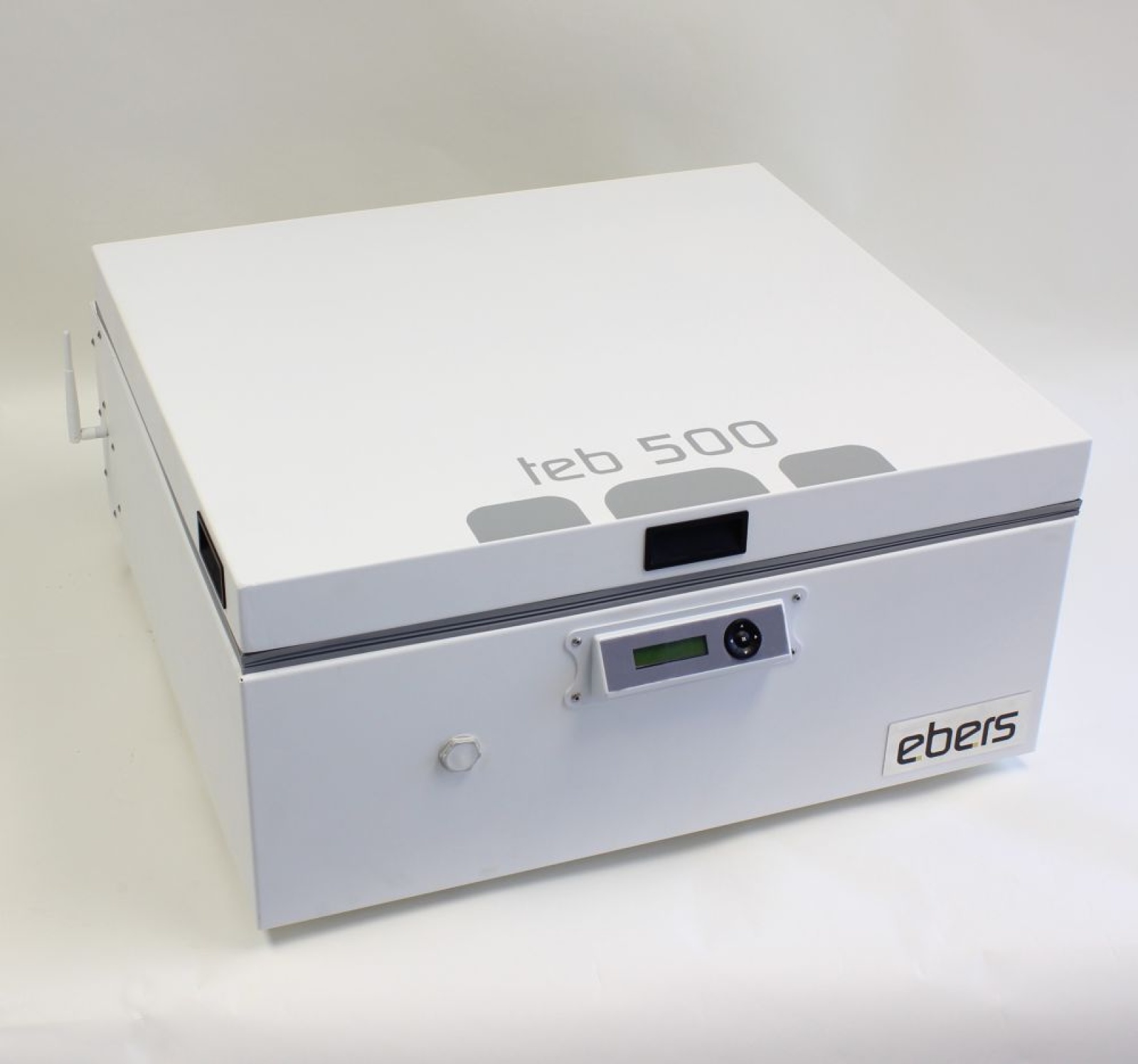

TEB500 Bioreactor

Got a Question? Request a Callback
TEB500 Bioreactor Open

A bioreactor for growing and developing tissue cultures under accurately controlled flow conditions

Rollover Image to Zoom

The TEB500 is a cell culture bioreactor that provides the ideal conditions for growing and developing tissue cultures under accurately controlled flow conditions. It has the functionality of a CO2-O2 incubator but incorporates an integrated double peristaltic pumping system.

The bi-gas incubation system provides standard CO2 and O2 control to generate hypoxic culture conditions with a front access port for the introduction of tubing or wires. A powerful flow system allows independent control of 2 x 4-channel pumpheads with manual, program or dynamic seeding modes of operation.

No more awkward, unreliable experimental setups involving pumps, incubators and a jungle of tubes - save time and effort with the TEB500. This stand-alone bioreactor integrates all the required functionality for a cell/tissue culture experiment under flow conditions.

Internal dimensions (w x d x h): 650 x 530 x 200mm.

The complete solution for cell culture under flow conditions.

  • Easy manipulation of flow circuits.
  • Simpler and more reliable experimental setups.
  • Powerful flow control.

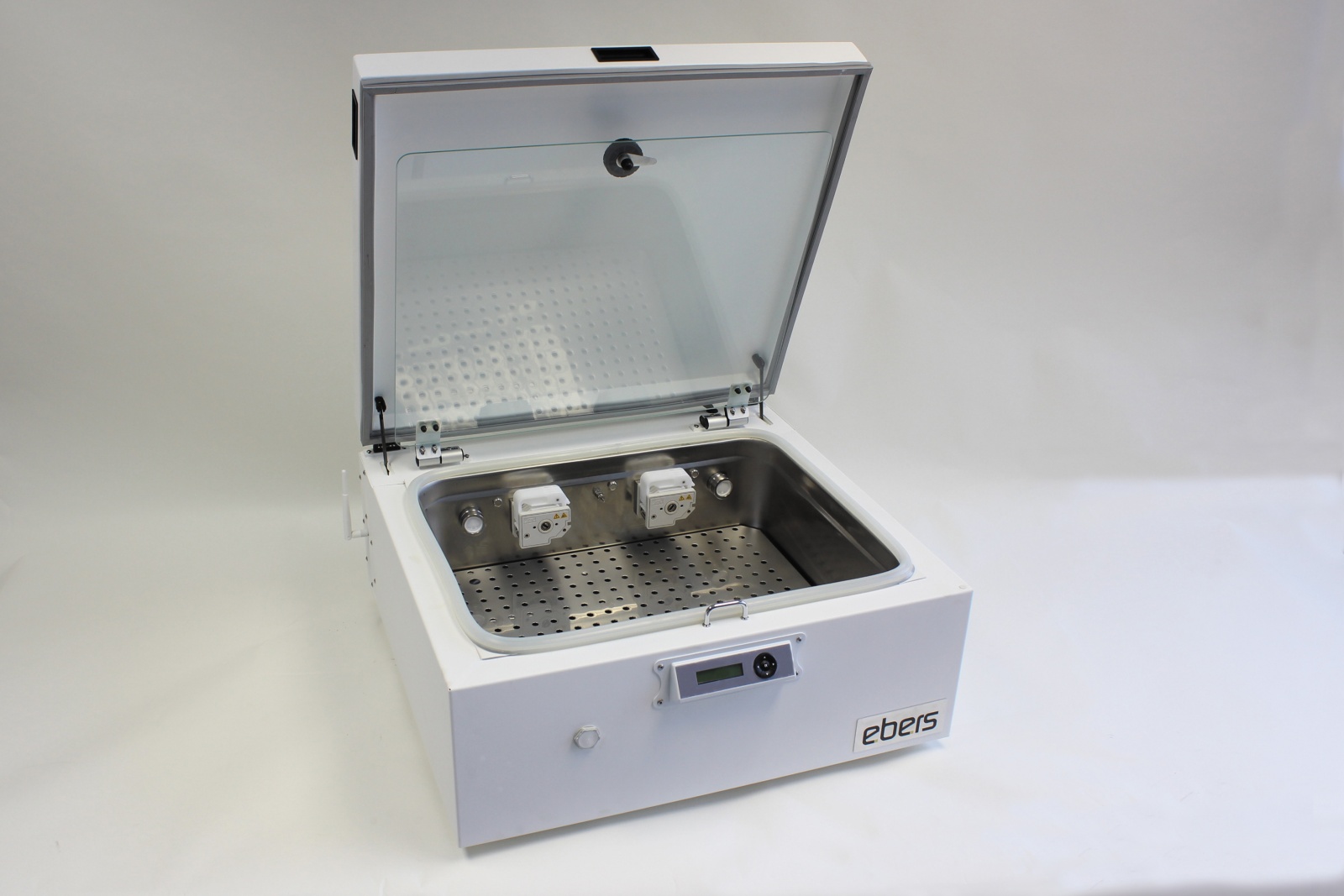

  • Double top door: ideal for building and handling flow circuits.
  • Fully integrated pumping systems: only the pumpheads are located inside the bioreactor chamber so no risk of overheating or contamination.

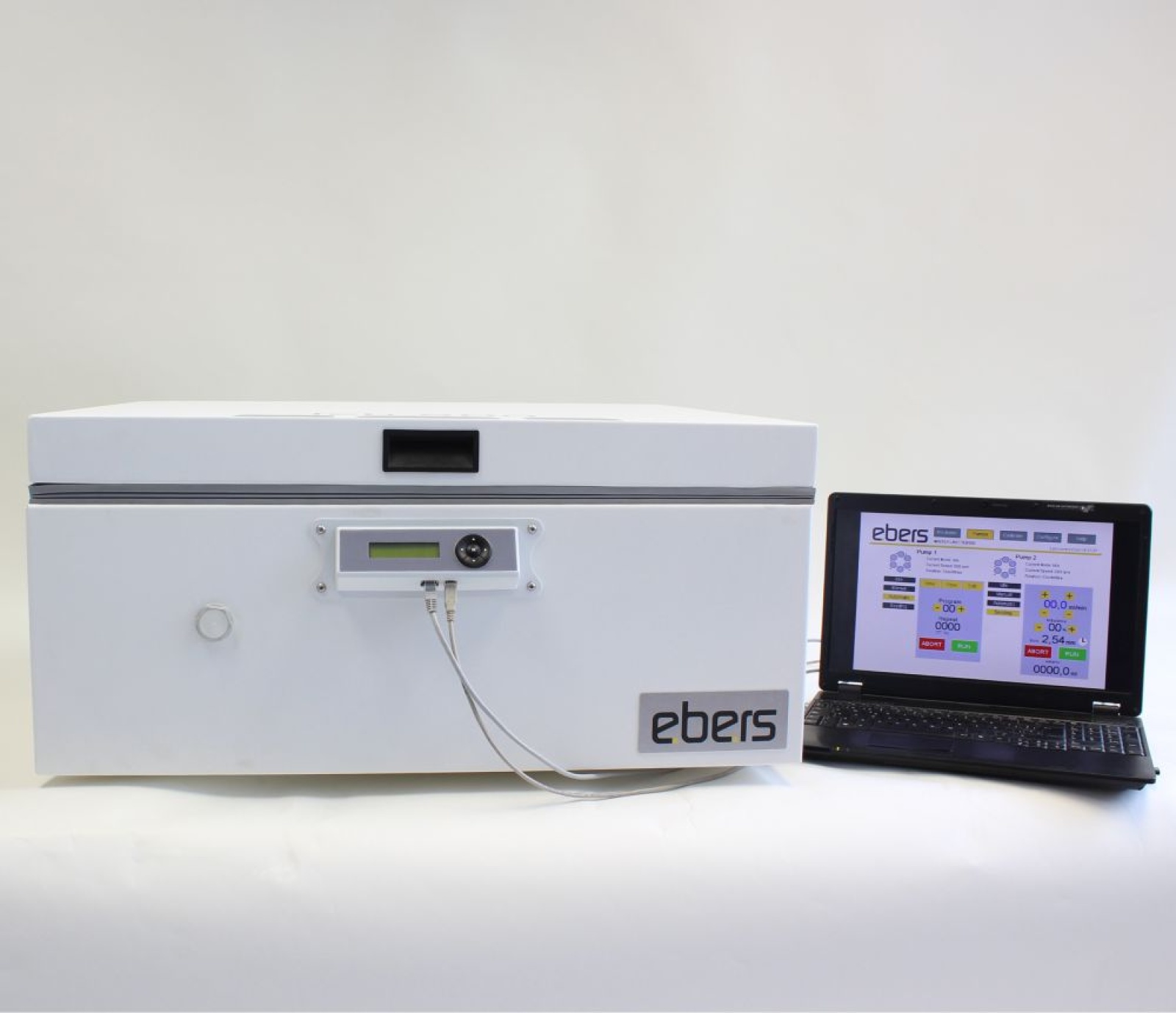

  • PC control interface: data logging and graphic display features plus optional remote operation via Wi-Fi from a PC or mobile device.
  • Front panel display: for easy control of atmospheric conditions.

View Specification

Specifications

Capacity (litres)
60.00
Data Logging
Included
Temperature Range
Room temperature +5 to 50°C
Touchscreen Control
No
Dimensions (W/D/H mm)
750 / 741 / 360
Weight (lbs/kgs)
132 / 60

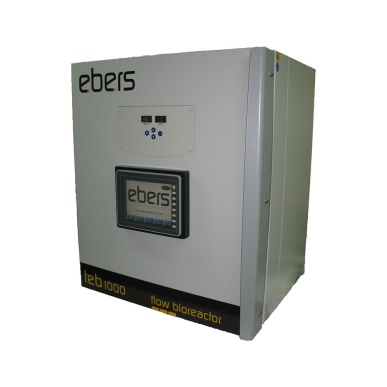

TEB1000 Bioreactor Master Unit

For a larger version of this bioreactor, see the TEB1000

TEB1000 Bioreactor
